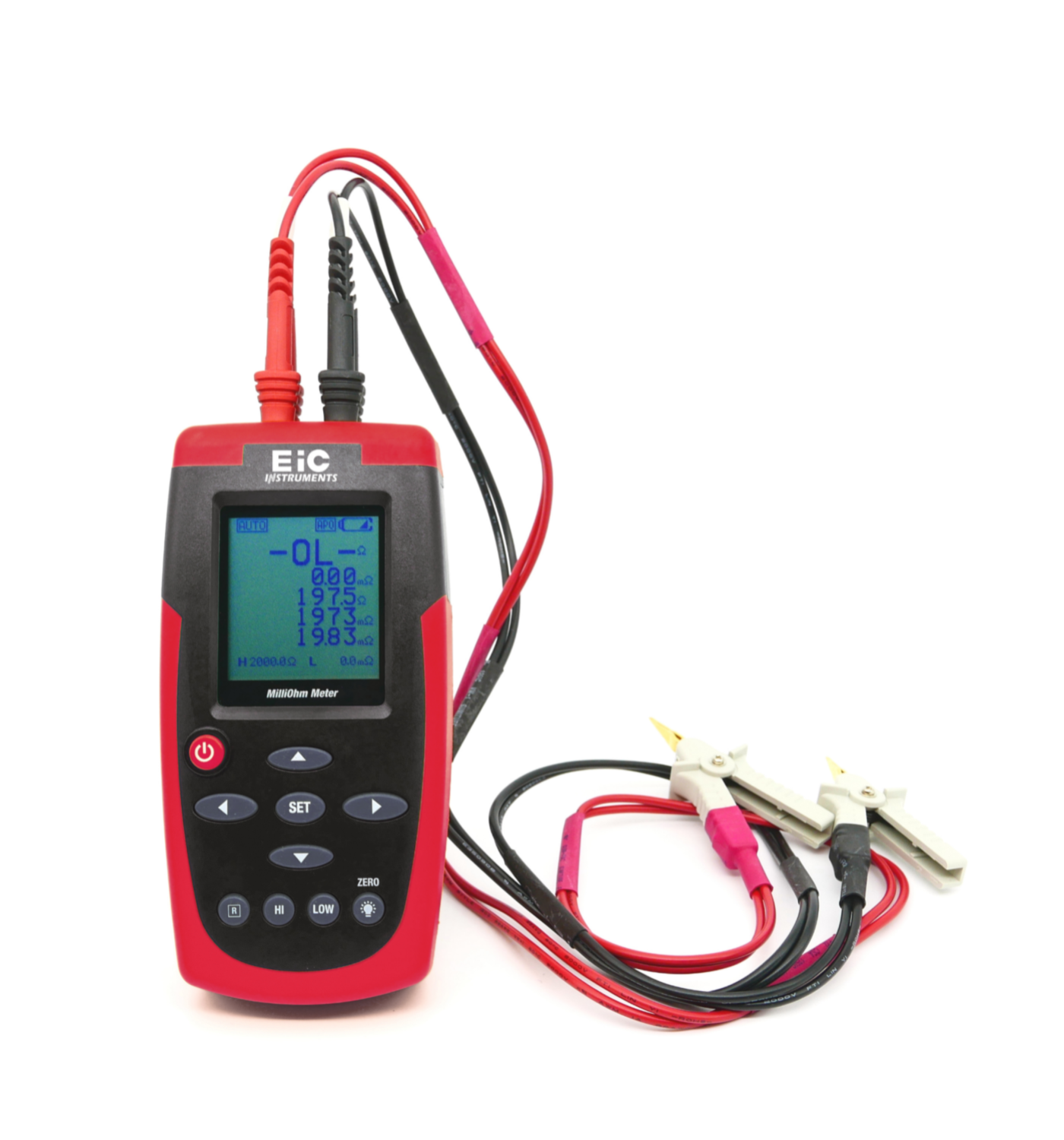

High accuracy, high resolution portable Milliohm Meter for field use
The ML50 is a high-accuracy, high-resolution portable Milliohm Meter designed for field use. Powered by batteries, it features auto-ranging capabilities and a 20-bit A to D converter for exceptional accuracy and low temperature drift. The meter delivers fast responses with a resolution of up to 0.01 mΩ using 4-wire Kelvin clip test leads. It offers six measurement ranges for versatile low-resistance testing, a dot-matrix display, and an automatic zero function. Additionally, it can display the current reading alongside four previous readings and supports Hi/Go/Lo resistance testing. The package includes 4-wire cables with Kelvin clip connectors, a 100V-240V AC universal adaptor, six AA batteries, and a hard carrying case for easy transport.
Specifications:
| Specifications | Range | Resolution | Accuracy |
| Auto Range | 0.00~20.09mΩ | 0.01mΩ | ±(0.3%rdg+2d) |
| 20.1~200.9mΩ | 0.1mΩ | ±(0.3%rdg+2d) |
| 201~2009mΩ | 1mΩ | ±(0.3%rdg+2d) |
| 2.01~20.09Ω | 0.01Ω | ±(0.3%rdg+2d) |
| 20.1~200.9Ω | 0.1Ω | ±(0.3%rdg+2d) |
| 201~2009Ω | 1Ω | ±(0.3%rdg+2d) |
| 20mΩ | 0.00~20.09mΩ | 0.01mΩ | ±(0.3%rdg+2d) |
| 200mΩ | 0.0~200.9mΩ | 0.1mΩ | ±(0.3%rdg+2d) |
| 2000mΩ | 0~2009mΩ | 1mΩ | ±(0.3%rdg+2d) |
| 20Ω | 0.00~20.09Ω | 0.01Ω | ±(0.3%rdg+2d) |
| 200Ω | 0.0~200.9Ω | 0.1Ω | ±(0.3%rdg+2d) |
| 2000Ω | 0~2009Ω | 1Ω | ±(0.3%rdg+2d) |
| Dimensions/ Weight | 6.3x3.2x1.7" (160x81x43mm)/ 8.5oz (240g) |
Features:
- Six ranges for wide low resistance measurements
- High resolution to 0.01m
- Zero adjustment, auto power off, and auto hold function
- Auto range, fast response, high accuracy (20 bits A to D), and low temperature drift
- Display reading with 4 previous readings simultaneously
- Support the Hi/Go/Lo resistance testing or selection
- Sampling rate 4 times per second
- Auto hold the reading and switch the driver current to 0.03mA for uninterrupted measurement
- Portable unit, easy for field use
- Dot-matrix 128*128 LCM with backlight
- Each meter completes with 4-wire cables with Kelvin clip connectors,100V-240V AC universal adaptor with 4 plugs, six AA batteries, and hard carrying case
