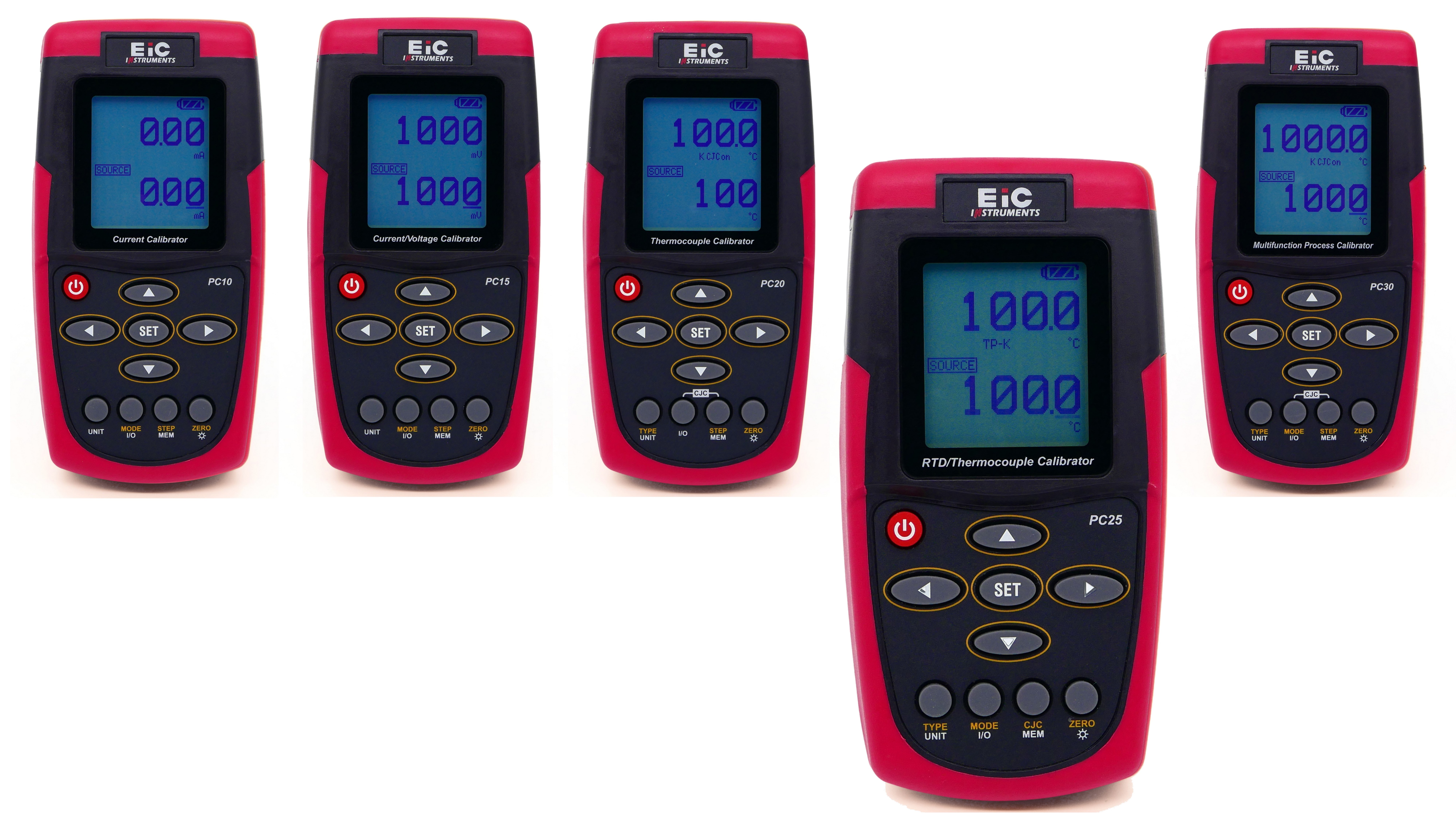

PC25 is an advanced hand-held instrument with palm-sized double molded housing and large dot-matrix digital backlit LCD for calibrating RTD (Resistance Temperature Detector) and thermocouple transmitters. It simulates and measures eight different types of RTDs, in units of °C or °F. It also simulates and measures resistance in units of ohms. In the thermocouple function, it sources and measures nine thermocouple-type devices (mV, J, K, T, E, C, R, S and N). PC25 offers high accuracy with a 20-bit A to D conversion and minimal temperature drift. It features an Auto Power Off function and allows for zero adjustment. PC25 has five user-adjustable calibration presets for quick calibrations. Designed for high cost-effectiveness, this tool is ideal for calibrating thermometers, transmitters, controllers, and recorders. Complete with test leads, alligator clips, thermocouple calibration cable with subminiature connectors, standard calibration cable with subminiature connectors,100V-240V AC universal adaptor with 4 plugs, six AA batteries, and hard carrying case.
Specifications:
| PC20 | PC25 | |||
| Specifications | Range | Range | ||
| Source | TC | mV | Output -5.00 to 55.00mV | Output -10.00 to 60.00mV |
| J | Output -58 to 1832°F (-50 to 1000°C) | Output -58.0 to 1832.0°F (-50.0 to 1000.0°C) | ||
| K | Output -58 to 2498°F (-50 to 1370°C) | Output -58.0 to 2498.0°F (-50.0 to 1370.0°C) | ||
| T | Output -184 to 752°F (-120 to 400°C) | Output -184.0 to 752.0°F (-120.0 to 400.0°C) | ||
| E | Output -58 to 1382°F (-50 to 750°C) | Output -58.0 to 1382.0°F (-50.0 to 750.0°C) | ||
| C | Output 32 to 3182°F (0 to 1750°C) | Output 32.0 to 3182.0°F (0.0 to 1750.0°C) | ||
| R | Output 32 to 3182°F (0 to 1750°C) | Output 32.0 to 3182.0°F (0.0 to 1750.0°C) | ||
| S | Output 32 to 3182°F (0 to 1750°C) | Output 32.0 to 3182.0°F (0.0 to 1750.0°C) | ||
| N | Output -58 to 2372°F (-50 to 1300°C) | Output -58.0 to 2372.0°F (-50.0 to 1300.0°C) | ||
| RTD | - | Output 0.0 to 3000.0Ω | ||
| Pt | - | Output -148.0 to 932.0°F (-100.0 to 500.0°C) | ||
| Max. Resolution (Source) | 0.01mV (TC), 1°F/°C (TC) | 0.01mV (TC), 0.5°F/0.2°C (TC,Pt), 0.1Ω (RTD) | ||
| Measure | TC | mV | -10.00 to 60.00mV | -10.00 to 60.00mV |
| J | -58.0 to 1832.0°F (-50.0 to 1000.0°C) | -58.0 to 1832.0°F (-50.0 to 1000.0°C) | ||
| K | -58.0 to 2498.0°F (-50.0 to 1370.0°C) | -58.0 to 2498.0°F (-50.0 to 1370.0°C) | ||
| T | -184.0 to 752.0°F (-120.0 to 400.0°C) | -184.0 to 752.0°F (-120.0 to 400.0°C) | ||
| E | -58.0 to 1382.0°F (-50.0 to 750.0°C) | -58.0 to 1382.0°F (-50.0 to 750.0°C) | ||
| C | 32.0 to 3182.0°F (0.0 to 1750.0°C) | 32.0 to 3182.0°F (0.0 to 1750.0°C) | ||
| R | 32 to 3182°F (0.0 to 1750.0°C) | 32.0 to 3182.0°F (0.0 to 1750.0°C) | ||
| S | 32 to 3182°F (0.0 to 1750.0°C) | 32.0 to 3182.0°F (0.0 to 1750.0°C) | ||
| N | -58.0 to 2372.0°F (-50.0 to 1300.0°C) | -58.0 to 2372.0°F (-50.0 to 1300.0°C) | ||
| RTD | - | 0.0 to 3000.0Ω | ||
| Pt | - | -148.0 to 932.0°F (-100.0 to 500.0°C) | ||
| Max. Resolution (Measure) | 0.01mV (TC), 0.1°F/°C (J,K,T,E), 0.5°F/0.2°C (C), 1°F/0.5°C (R,S), 0.2°F/0.1°C (N) | 0.01mV (TC), 0.1°F/0.1°C (J,K,T,E,N,Pt), 0.5°F/0.2°C (C,R,S), 0.1Ω (RTD) | ||
| Accuracy | ±(0.01% rdg+1d)mV, ±(0.05% rdg+1.8°F/1.0°C) | ±(0.05% rdg+1d)mV, ±(0.05% rdg+1.0°F/0.6°C) for J,K,T,E,N, ±(0.05% rdg+1.5°F/0.8°C) for C,R,S, ±(0.1% rdg+0.3Ω) for RTD, ±(0.1% rdg+1.5°F/0.8°C) for Pt | ||
| Note | - | RTD/PT, 0.03mA ~ 3mA input, 3V output maximum. Support: PT100, PT200, PT500 and PT1K. (385 & 392) | ||
| Dimensions/ Weight | 6.3x3.2x1.7" (160x81x43mm)/ 8.0oz (228g) | 6.3x3.2x1.7" (160x81x43mm)/ 8.0oz (228g) | ||
