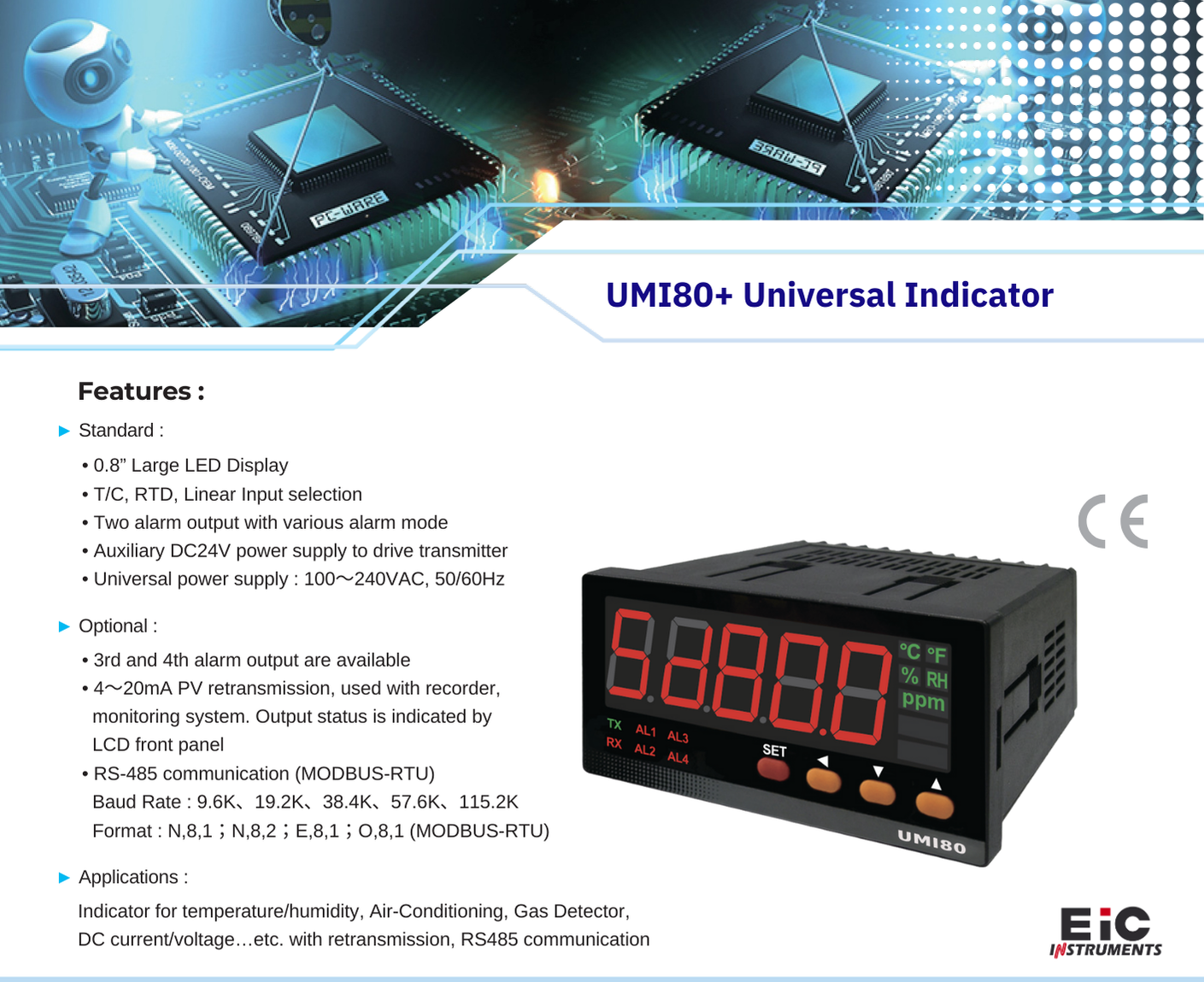

The UMI80+ Universal Monitoring Indicator is a powerful device designed to provide a variety of monitoring and alerting functions. With two alarm outputs (expandable to four alarm outputs), the indicator can effectively monitor and manage parameters in a wide range of industrial and commercial applications.
Key Features of the UMI80+ Universal Monitoring Indicator:
Multiple Alarm Outputs: The UMI80+ provides two to four alarm outputs, which enables users to set multiple alarm conditions to sound alarms in different situations, improving the safety and reliability of the system.
4-20mA output: The device supports 4-20mA process variable (PV) retransmission, which means it can be connected with recorders and monitoring systems to achieve real-time monitoring and recording of data, which is convenient for users to analyze data and make decisions.
LCD Display: The UMI80+ is equipped with a front-panel LCD display that clearly displays current status and alarm information, allowing users to quickly understand system health.
Designed with the user in mind, the UMI80+ offers reliable performance and flexible application options, whether in factory automation, environmental monitoring, or other applications that require precise monitoring.

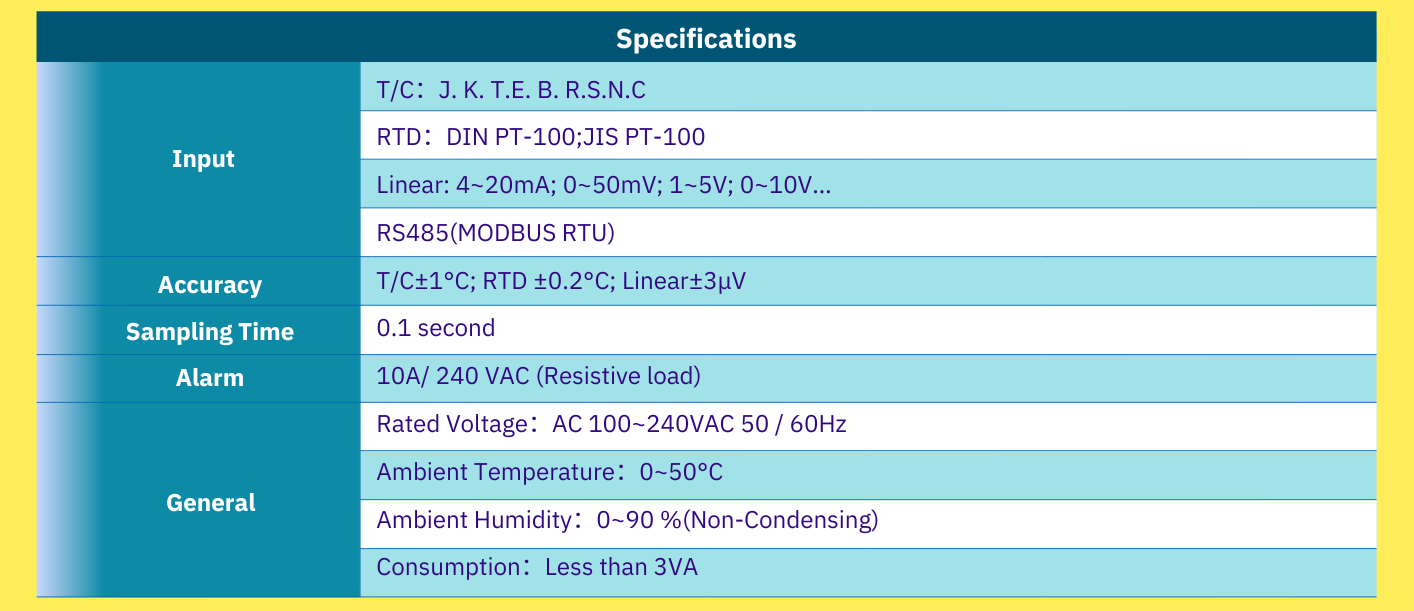

Specifications:
